Apple Patents New Type of Interconnected Circuit Board Design, That Will Help Make Devices Thinner

The US Patent and Trademark Office has awarded Apple with a new patent, that seems to show a way to make devices thinner, courtesy of a new type of design for interconnected circuit boards. This eliminates board to board connectors on printed circuit boards of iPhones, iPads and even MacBooks and TVs.

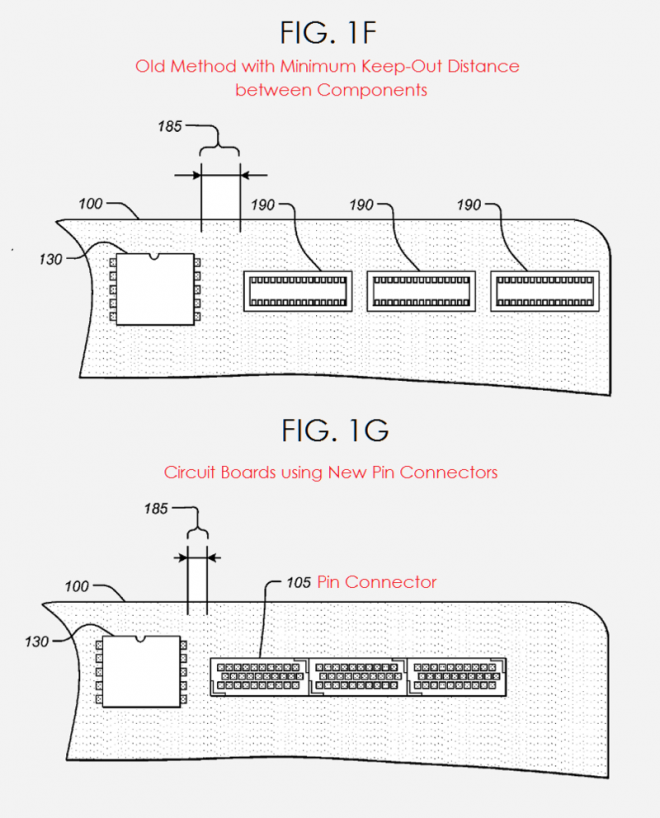

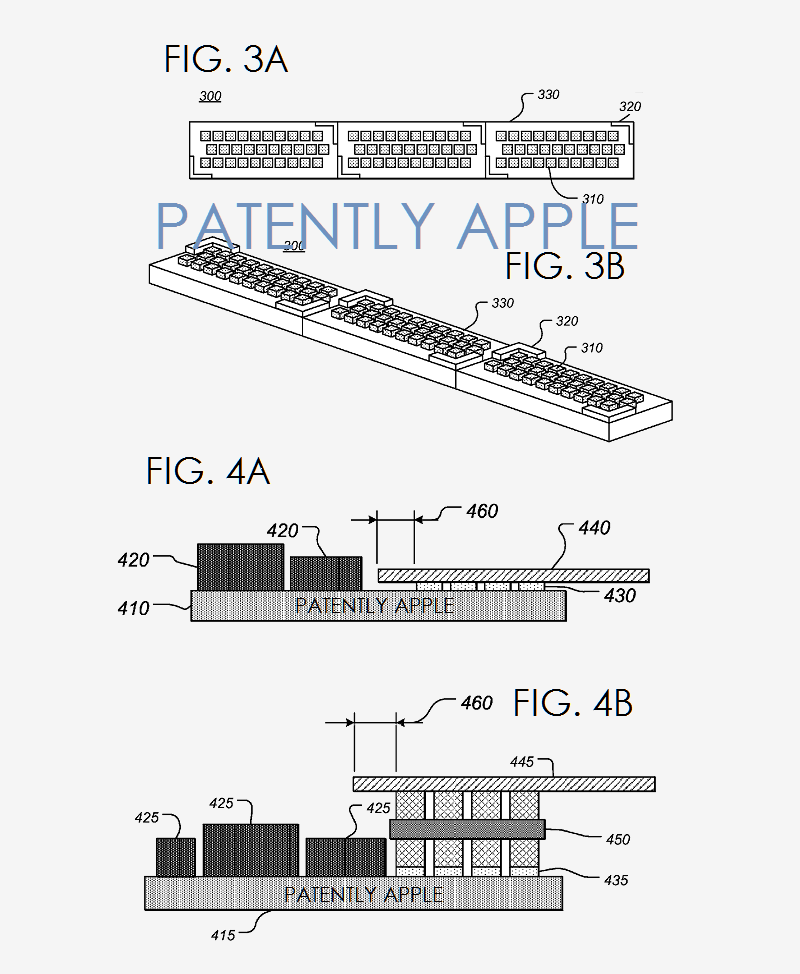

This will allow to add more components in the same space and make devices smaller and more compact. Instead of using components that are coupled to the printed circuit board and distanced between themselves, Apple wants to implement a pin connector method on the circuit board and stick the components closer to each other. This increases the density of parts in the same room that was available before.


The iPhone 6s had to increase its thickness for the sake of the new taptic engine, that little extra nudge of vibration that’s half of the charm of the 3D Touch. In the future Apple may need even more space for other components, so this move makes sense. And that particularly since we’re headed to a future without physical buttons and speakers, which may also leave extra room.


via patentlyapple
